AdvanReader-10TM Keonn USB RFID UHF reader

Beskrivning

KEONN – AdvanReader-10TM USBRFID UHF reader

Advaneader 10 enkel läsare & lågt pris



AdvanReader  10  UHF-läsare med kapsling



AdvanReader-10 i är en liten UHF RFID-läsare med låg vikt, USB-läsare med integrerad antenn (optional)

AdvanReader-10 behöver anslutas till någon form av dator som hanterar lästa taggdata.

AdvanReader-10 är perfekt till IoT applications and other embedded uses where a controller hardware already exists. SDK available for:

  • Java
  • C#
  • C/C++

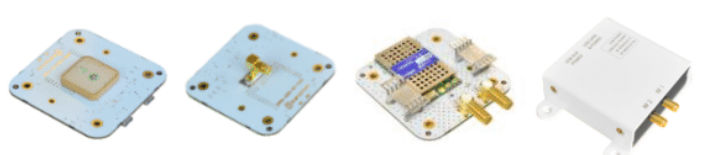

AdvanReader-10 comes with three models:

  • 1 port with embedded ceramic antenna
  • 1 port with a SMA connector to operate with any antenna
  • 2 ports with the corresponding SMA connectors

AdvanReader-10 benefits:

  • high-performance
  • small form factor
  • lightweight
  • with optional embedded antenna
  • reduces time and cost of developing RFID systems

Versions:

  • 1 port with integrated antenna
  • 1 port with connector for external antenna
  • 2 ports, with and without enclosure

Specifications:

Air Protocol Interface EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Supported regions FCC (NA, SA) 917 MHz – 928 MHz
ETSI (EU, IN) 865.6 MHz – 867.6 MHz
MIC (KR) 917 MHz – 921 MHz
SRRC-MII (P.R.China) 920 MHz – 925 MHz
Brazil: 917-927 MHz(by using channel selection)
ACMA (AU, NZ) 920 MHz – 926 MHz
Open region
RF connections One 50 ohm SMA connectors (version with 1 port)
Two 50 ohm SMA connectors (version with two ports)
RF Power Programmable from 0dBm to 27 dBm in 0.5 dBm steps (version with 1 port)
Programmable from 0 dBm to 30dBm in 0.5 dBm steps (version with 2 ports)
Max tag read distance Up to 6 m with 6dBi gain antennas (version with 1 port)
Up to 6.5 m with a 6 dbiL antenna (version with 2 ports)
(read distance depends highly on tag sensitivity and other factors)
Max tag read throughput Up to 150 tags/second (version with 1 port)
Up to 50 tags/second (version with 2 port)
Data communications USB comm connector (micro-B)
On-board sensors and actuators RF amplifier temperature sensor (available through the reader API)
Power consumption Version with 1 port:
Idle consumption < 1 W
Max consumption (@27 dBm) < 4.5 W
Version with 2 ports:
Idle consumption < 3.5 W
Max consumption (@30 dBm) < 9.5 W
Temperature -20 °C to +50 °C
Size without enclosure 67 mm x 67 mm x 10.7 mm (2.64 inches x 2.64 inches x 0.42 inches) (version with 1 port)
82 mm x 68 mm x 15.1 mm (3.23 inches x 2.68 inches x 0.59 inches) (version with 2 ports)
Weigh without enclosure 28 g (0.99 oz) (version with 1 port and connector for an external antenna)
50 g (1.8 oz) (version with 1 port and embedded antenna)
42 g (1.48 oz) (version with 2 ports)

PRODUKTBLAD:  Keonn-AdvanReader-10-Data_sheet.cleaned (2)
