C66 HANDDATOR UHF RFID – typ telefon
Har du frågor om pris eller funktion?
Kontakta oss för mer info om produkten, dess funktion och användningsområden!
Produktbeskrivning

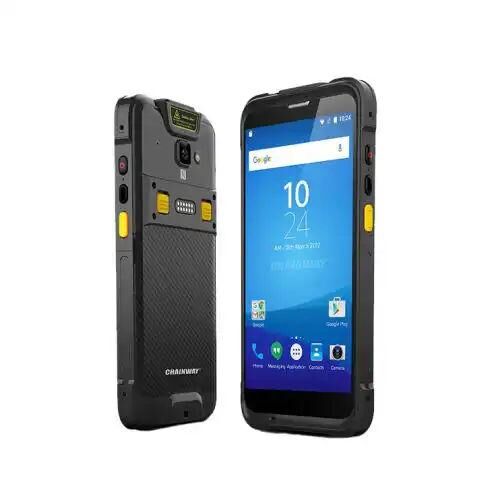

C66 RFID handdator UHF eller HF/NFC (Android 11)
Chainway C66 är en mycket utbyggbar, robust handdator med stor skärm. Utrustad med Qualcomm octa-core-processor och Android 11, C66 UHF kommer med 5,5-tums HD-skärm, UHF RFID-läsare, streckkodsskanning och NFC-funktion.
Enheten stöder snabbladdning . Den erbjuder valfri fingeravtrycksigenkänning, volymmätning, inbyggd UHF-funktion och med Wi-Fi 6-färdig plattform för högre datagenomströmning och säkerhet som fullt ut tillfredsställer behoven inom logistik, lager, tillverkning, detaljhandel, mm.
 Android 11 |  Qualcomm Octa-core 2.0GHz |
 RAM+ROM: 3+32GB/4+64GB (Optional) |  Optional Trigger Handle (Extended 5200mAh Battery) |
 4420mAh/5200mAh Removable Battery |  QC3.0 18W Quick Charge |
 Barcode Scanning (Optional) |  Fingerprint Recognition (Optional) |
 Volume Measurement (Optional) |  NFC |
 UHF RFID (Optional) |  Support UHF Sled (Optional) |
 13MP Autofocus Camera |  Wi-Fi 6-ready |
| Physical Characteristics | |
| Dimensions | 160.0 x 76.0 x 15.5 / 17.0mm / 6.3 x 2.99 x 0.61 / 0.67 in. |
| Weight | 287 g / 10.12 oz. (device with battery); 297 g / 10.47 oz. (device with battery, Fingerprint / Volume Measurement / Built-in UHF) |
| Display | 5.5-inch high definition full display (18:9) , IPS 1440 x 720 |
| Battery | Removable main battery (normal version:4420 mAh ; Android 11 with fingerprint / built-in UHF / volume measurement version: 5200mAh ) 5200 mAh optional pistol battery, support QC 3.0 and RTC Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h) Continuous use: over 12 hours (depending on user environment) Charging time: 2.5 hours (charge device by standard adaptor and USB cable) |
| Touch Panel | Multi-touch panel, gloves and wet hands supported |
| Notification | Sound, LED indicator, vibrator |
| Interfaces | USB Type-C, USB 3.1, OTG, extended thimble |
| Card slot | 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card |
| Audio | 2 microphones，1 for noise cancellation；1 speaker；receiver |
| Keypad | 1 power key, 2 scan keys, 2 volume keys |
| Sensors | Accelerometer sensor, light sensor, proximity sensor, gravity sensor |
Communication
WLAN Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4, IPV6, 5G PA Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165),Depends on local regulations; Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc. WWAN (Europe, Asia)2G: 850/900/1800/1900 MHz 3G: CDMA EVDO: BC0 WCDMA: 850/900/1900/2100MHz TD-SCDMA: A/F(B34/B39) 4G: B1, B3, B5, B7, B8, B20, B38, B39, B40, B41WWAN (America)2G: 850/900/1800/1900 MHz 3G: 850/900/1900/2100 MHz 4G: B2/B4/B5/B7/B8/B12/B13/B17/B28A/B28B/B38 Bluetooth Bluetooth 5.1 Vo-LTE Support Vo-LTE HD video voice call GNSS GPS/AGPS, GLONASS, BeiDou,Galileo,internal antenna
Länk till video: C66 UHF RFID Handdator VIDEO
PRODUKTBLAD C66: C66 UHF RFID Handdator
Tillbehör katalog: C66-Accessories-Guide-EN-2.cleaned (1)
