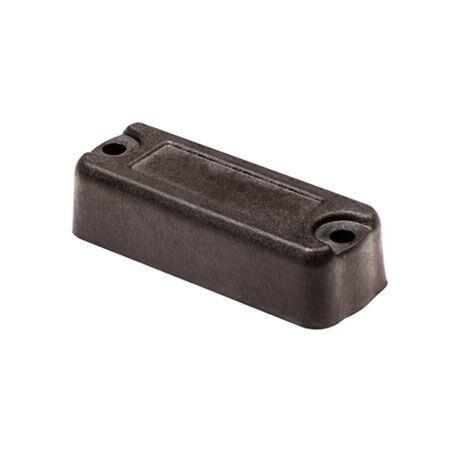

Devil4015 high temp RFID Tag UHF
Har du frågor om pris eller funktion?
Kontakta oss för mer info om produkten, dess funktion och användningsområden!
Tel: +46 708 40 67 69
Mail: info@identsys.se
Produktbeskrivning
Devil3001 - Hög temperatur och syra-alkali-resistent Tag
Hög temperatur och syra alkalibeständig tagg .
Devil3001 RFID Smart tag är speciellt utformad för att monteras på metallytor för industriella marknader där kritiska och potentiellt farliga situationer kräver tillförlitlig identifiering av utrustning eller produkter
Devil3001 rfid-taggar för extrem temperatur kan överleva temperaturer upp till 300°C och andra tuffa ämnen som kraftiga stötar och frätande kemikalier (syra, alkali etc).
Generellt för RFID och förhöjda temperaturer gäller att taggen inte förstörs vid den angivna max-temperaturen. Arbetstemperatur, d.v.s. temperatur där man kan läsa eller skriva data är i regel + 70 gr.C eller lägre.
| Functional Specifications: |
| RFID Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | US 902-928MHz, EU 865-868MHz |
| IC type | NXP UCODE 8 |
| Memory | EPC 128bits , USER 0bits, TID 96bits |
| Write Cycles | 100,000 times |
| Functionality | Read/write |
| Data Retention | 50 Years |
| Applicable Surface | Metal Surfaces |
| Read Range(On Metal) :(Fix Reader) | 6.5m , US ( 902-928MHZ ) 6.0m , EU ( 865-868MHZ ) |
| Read Range(On Metal) :(Handheld Reader) | 3.5m , US ( 902-928MHZ ) 3.5m , EU ( 865-868MHZ ) |
| Warranty | 1 Year |
| Physical Specification: |
| Size | 41.0x29.0mm, Hole: D2.3mmx4 |
| Thickness | 9.0mm |
| Material | PEEK |
| Colour | Black |
| Mounting Methods | Screw - Socket head cap screw(M2) |
| Weight | 15g |
| Enivironmenal Specification: |
| IP Rating | IP68, IP69X |
| Storage Temperature | -60°С to +260°С, +300°С100 hours |
| Operation Temperature | -40°C to +200°C |
| Withstand PH | PH0 to PH14,and all other liquid that PEEK can handle with |
| Reliability testing terms and results | a. Withstand 300°С for 100 hours continuously without damage. b. Withstand 280°С for 1000 hours continuously without damage. c. Withstand 260°С for 2000 hours continuously without damage. d. Withstand -20°С for 8 hours then 260°С for 16 hours per day, 80 days continuously without damage. e. Withstand from 150°С to -40°С, 7.5 cycles per day, 80 days continuously with total 600 cycles without damage. f. Withstand 260°С for 100 hours continuously then soaking in 2 meters depth water for 48 hours, without seepage or damage. |
| Compression strength | 150Mpa |
| Certifications | Reach, RoHs, CE |
PRODUKTBLAD: Devil-4015 U8 ENV4 High Temp UHF tag
