Antenn UHF 3m Kabel RP-TNC MALE coax-kontakt
Har du frågor om pris eller funktion?
Kontakta oss för mer info om produkten, dess funktion och användningsområden!
Produktbeskrivning

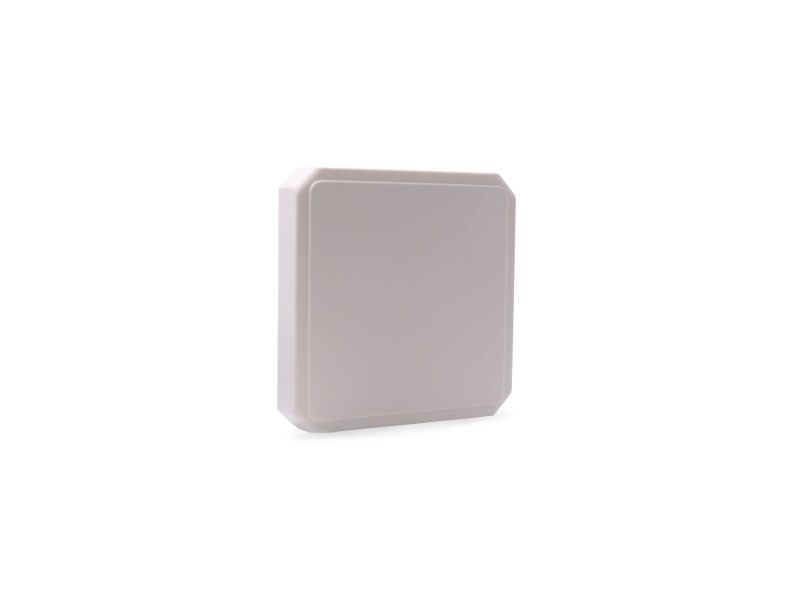

UHF RFID högpresterande 9dbi panelantenn
ARTIKELNUMMER: CHA -CF-RA9002
Product Specifications
| RFID Parameters | Technical Parameters | ||||
| Frequency | 868-868MHz（EU）
902~928MHz（US） |
Bandwidth | 100MHz | ||
| Gain | 9dBi | Maximum power | 100W | ||
| Reading distance | 0-10 meters (depending on reader and tag) | Wind resistance | 60 m/s | ||
| Back connector model | N-type female | Front-to-back ratio F/B | ≧23 | ||
| Polarization mode | Circular polarization | Standing wave ratio | ≦1.3 | ||
| Radiation angle | Horizontal: 60° Vertical: 55° | Impedance | 50 Ω | ||
| Environmental parameters | Lightning protection | DC grounding | |||
| Protection level | IP67 | Physical parameters | |||
| Operating temperature | -40～80℃ | Reflector material | Aluminum Alloy | ||
| Pole diameter | Φ40-Φ75 Pole | Antenna cover material | ABS | ||
| Product List | Size | 257*257*33mm | |||
| Standard accessories | Antenna*1, mounting bracket*1, 3m feeder*1 | Weight | 0.6kg | ||
Related Products
| Model | CF-RA5001 | CF-RA9002 | CF-RA1201 |
| Gain | 5.5dBi | 9dBi | 12dBi |
| Polarization | Circular Polarization | Circular Polarization | Linear polarization/circular polarization |
| Reading distance reference | 0-6 meters
(depending on reader and tag) |
0-10 meters
(depending on reader and tag) |
0-15 meters
(depending on reader and tag) |
| Dimensions | 127*127*20mm | 257*257*33mm | 450*450*40mm |
