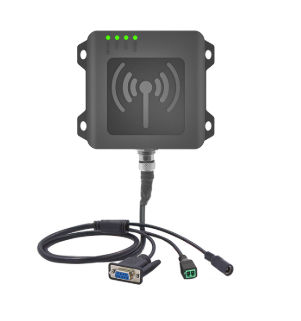

CHA-CF821 UHF-läsare av industriell kvalitet – alternativa gränssnitt

– Inbyggd 5dbi linjärpolariserad keramisk antenn
– Stöd RSSI-signalavstånd
– Stöder Modbus-protokoll och kan anpassa Profinet-protokollet
– Stöder flera programspråk för att utveckla VB, Python, Java, Delphi, c# och andra språk
– Tillämpning: drift av löpande band, produktionskontroll, automationshantering, bilproduktion, PLC-kontroll, avfallshantering, etc.

ARTIKELNUMMER:

• CHA-CF821-RS232

• CHA-CF821-RS485

• CHA-CF821-TCP/IP

Product specifications

RFID technical parameters			Data communication
Frequency	902~928MHz (US）865~868MHz （EU）		Communication Interface	RS232/RS485/RJ45/POE（Optional）
Protocol	ISO18000-6C (EPC GEN2)		Protocol	Modbus/ Profinet (customized)
RF output power	0dbm—33dbm(Adjustable)		Communication rate	Serial port rate 9600~115200 bps
Built-in antenna	5dbi linearly polarized ceramic antenna		GPIO interface	Network port rate 10/100Mbps
Card reading distance	0~5m		Interface Type	1 set of GPI, supports customized GPO
writing distance	0-1m		Working status display	Round waterproof M12 female pin
Maximum receiving sensitivity	-75 decibels Maximum return loss: 10dbm		Operating Voltage	DC 9~24V
RSSI	support		Development environment
Operating mode	Active mode/command mode/trigger mode		SDK	Demo software, API, examples, user manual
Physical parameters			Development language	VB、Python、Java、Delphi、c#
Material	Fireproof ABS		Firmware version	Support online upgrade
size	115*95*35 mm		Working environment
net weight	450g		IP protection level	IEC IP67
Package Size	24*17*13cm		Operating temperature	-20℃~65℃
Package weight	1.1kg		Storage temperature	-40℃~85℃
			humidity	5%-95%，non-condensing
