Produktbeskrivning

RFID läsare – RFID KEONN AdvanReader-150

on-board computer and open Linux OS

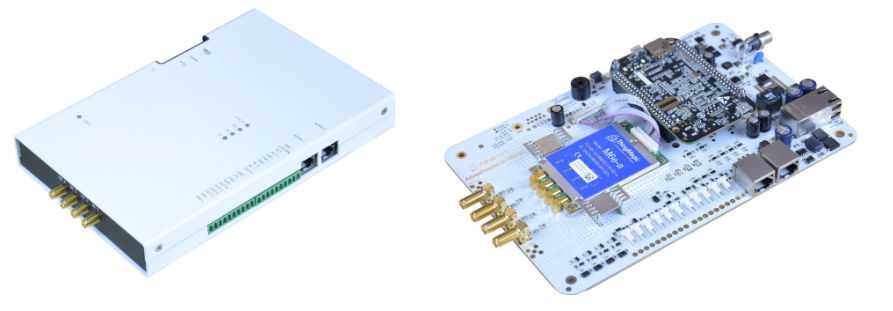

Advan Reader 150 UHF RFID läsare med inbyggd LINUX dator



AdvanReader-150 egenskaper:

  • Inbyggd LINUX-dator där du kan skriva egen mjukvara för logik och styrning av InN-& UT-gångar
  • Kan köras på batterier för stand-alone applikationer
  • 4 eller 2 portar för antenner
  • Hög uteffekt och hög känslighet även för svaga signaler
  • Kan kontrollera upp till 1024 antenner med Keonn´s multplexer
  • Möjlighet att elektroniskt styre antennfältens riktning  med funktionen AdvanPhaser
  • Extern högtalare kan ansluts för eventuella larmfunktioner
  • 2 digital/analog inputs
  • 8 digital outputs
  • Communications interface: Ethernet, optional WiFi

AdvanReader-150 features:

  • onboard Linux computer: you can program your own software routines, saving the need and cost of an external computer
  • works with batteries, for stand-alone applications: includes a mode of minimum consumption (sleep mode), increasing battery life. It monitors the battery level.
  • 4-port or 2-port
  • high power, high sensitivity
  • controls up to 1024 antennas, with Keonn multiplexers
  • controls electronically the beam orientation of directive antennas, with AdvanPhaser
  • direct connection to an external loudspeaker for alarm applications
  • 2 digital/analog inputs
  • 8 digital outputs
  • Powers up external devices: non-isolated power output: 5 V, 100 mA (DC)
  • Powered by PoE, power supply of 12 V (DC), or batteries
  • Communications interface: Ethernet, optional WiFi
  • software drivers with advanced functions for monitoring and control

AdvanReader-150 benefits:

  • saves the cost of an external computer
  • fully open Linux operating system
  • ideal for stand-alone systems
  • high-performance: high output power and high sensitivity
  • reduces time and cost of developing RFID systems. Ideal for embedding it inside RFID systems
  • can become your own reader, if you put your company logo on the enclosure

Specifications:

Air Protocol Interface EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Supported regions FCC (NA, SA) 902 MHz – 928 MHz
ETSI (EU, IN) 865.6 MHz – 867.6 MHz
MIC (KR) 910 MHz – 914 MHz
SRRC-MII (P.R.China) 920 MHz – 925 MHz
Brazil: 902-907,5 MHz and 915-928 MHz (by using channel selection)
ACMA (AU, NZ) 920 MHz – 926 MHz
Open region
RF connections Four 50 ohm SMA connectors for monostatic antennas (4-port version)
Two 50 ohm SMA connectors for monostatic antennas (2-port version)
RF Power 4-port version:Programmable from 5 dBm to 31,5 dBm in 0.5 dBm steps
2-port version:Programmable from 0 dBm to 30 dBm in 0.5 dBm steps
(Maximum power may have to be reduced to meet regulatory limits)
Max tag read distance Up to 9 m (33 feet) with 6dBi gain antennas
Max tag read throughput Up to 400 tags/second
Data communications Ethernet: IEEE 802.3 up to 100 Mbps
Wifi through a USB dongle:RTL8192CU chipset is supported by default.
Wi-Fi USB dongle not included
Power supply Power Over Ethernet (PoE): IEEE 802.3af and 802.3at (Type 1 & Type 2)
Power supply: 11 V (DC) @2 A to 24 V (DC) @ 1 A
Output power 5 V @ 100 mA non-isolated power supply to feed external devices and circuitry
On-board sensors and actuators See data sheet
On-board LED indicators See data sheet
Inputs See data sheet
Outputs See data sheet
Power consumption Idle consumption < 3 W
Max consumption (@31,5 dBm) < 14 W
Temperature -20°C to +40°C
Size 222 mm x 146 mm x 24 mm (8.74 in x 5.39 in x 0.95 in) (without enclosure)
214 mm x 142.5 mm x 28 mm (8.42 in x 5.61 in x 1.1 in) (with enclosure)
Weight 280 g (9.9 oz) (without enclosure)
620 g (21.9 oz) (with enclosure)

PRODUKTBLAD: Keonn-AdvanReader-150-Data_sheet
